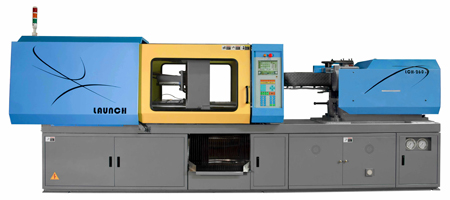

Color Mix Injection Molding Machine


Specification: H series are from LCH-H80 to LCH-H500 (specification chart); V series are from LCH-V100 to LCH-V850 (specification chart).
Computer: Compatible with D type computer.
Hydraulic Circuit:

Compatible with the followings:
Proportional Pressure & Speed Type
High Speed Type
Energy Saving Servo Hybrid Type
Energy Saving Variable Pump System
Energy Saving Inverter System
Accumulator Injection Closed-Loop Type
Semi Closed-Loop Type
Double Loop Circuit Type

More compatible types available, please contact us for detail.



A special characteristics of color mix injection molding machine is that it has the ability to change a single color product to multi-mixed color product without changing the mold condition, such as wood striped, Mable striped, jade striped..., etc. There is no secondary process (spaying and water painting) required, which gives a new life to the product, extends the product life, and increases the profit margin. Once the injection setting has completed, the injected strips will be evenly mixed that all products will have the same looking, which is different from plum injection molding machine that gives scattered and bad joint effects.

The injection screw structure on a color mix injection machine is the primary difference from other machine types. Color mix injection machine has either dual screw shaft or triple screw shaft design, which dual screw shaft design injects two colors product and triple screw shaft injects two or three colors. Of course, both designs can be used to inject single color products. While different injection screw structures inject different strips, the triple screw shaft design gives wilder design range and expansion.

Although color mix injection machine is primary used for mixed color products, it can be operated as a three color separated injection machine by adjusting the mold, which injects each color separately.

Color mix injection machine is primary used to make the following products:
Furniture products: table, chair, storage container..., etc.
Decorative products: comp, picture frame..., etc.
Gardening products: flower pot, flower plate..., etc.
Art craft product: ring bell, various object..., etc.
